All Arch aluminum products are precision, low-stress machined preserving the materials mechanical properties. These properties are critical for lap shear testing to reduce bending during test, thereby maintaining the highest possible shear failure mode.
Lap Shear Plates per ASTM D-1002
Spec
Size
Material
D1002
(5) 1" x 4"
Aluminum
Steel
Titanium
Composites
Thermoplastic
Thermoset
MMM- A -132
(modified D1002)
"D1002" references the ASTM specification for lap shear specimens and testing. Our "D1002" plates are fabricated to meet the specification's dimensional requirements.
Call For Pricing
(5) 1" x 5.1"
2024-T3
6061-T6
7075-T6
MIL-Spec
"MMM-A-132" references the Federal specification for metal to metal bonding adhesive. The "MMM-A-132" plates are nearly identical to our "D1002" plates with the exception of being ~5.1" long instead of 4". The extra length is convenient when using large (ie MTS 22 kip) test grips with limited space between grips to insert bonded specimens.
Call For Pricing
(5) 1" x 4"
2024-T3
6061-T6
7075-T6
"Mil-Spec" references a design used by US government research labs. Individual lap shears ultimately are 1" x 4" however the plates slots are wider and holes are used for plate to plate alignment. Design requires post machining to separate each specimen (other designs allow for snapping apart). Requires custom bonding fixture.
Call For Pricing
D1002
Solid Plate
7" x 4"
2024-T3
6061-T6
7075-T6
D1002
Single Specimen Plate
1" x 4"
Aluminum
Steel
Titanium
Composites
Thermoplastic
Thermoset
"D1002 Solid Plate" references the ASTM specification for lap shear specimens (figure 2) and testing. Our "D1002 Solid Plates" are fabricated to meet the specification dimensional requirements however custom sizes are available at no extra charge. As with all of our plates, you can be assured of flat, stress-free plates with clean sharp edges. We have added alignment holes for your convenience to hold plates during the bonding process. Bonding fixtures are available upon request.
Call For Pricing
Call For Pricing
D1002
Single Specimen Plate
1" x 5"
2024-T3
6061-T6
7075-T6
Call For Pricing
6-Specimen Plates Readily Available
Other Adherends for Adhesive Testing

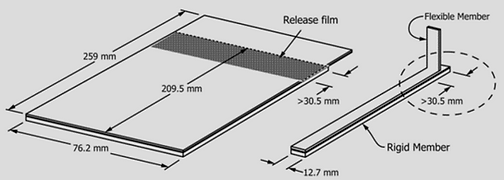

Floating Roller Peel
Spec & Material
ASTM 3167
2024-T3 Clad or Bare 0.025" Thick (flexible)
ASTM 3167
2024-T3 Clad or Bare 0.064" Thick (rigid)
Size
3" x 10.3"
1" x 10.3"
1/2" x 10.3"
3" x 8.25"
1" x 8.25"
1/2" x 8.25"
T Peel
ASTM 1876
2024-T3 Clad or Bare 0.032" Thick
6" x 12"
1" x 12"
1/2" x 12"

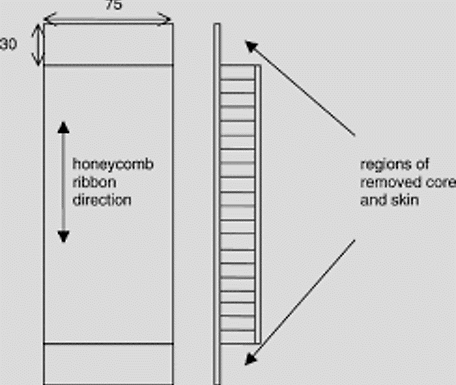

Climbing Drum Peel
ASTM 1781
2024-T3 Clad or Bare 0.020" Thick
ASTM 1781
2024-T3 Clad or Bare 0.064" Thick
12" x 12"
12" x 10"
